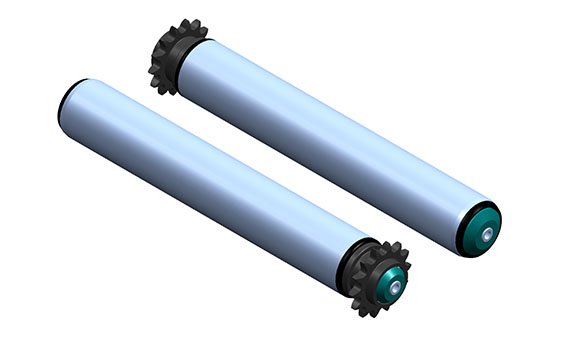

B212 style single polymer sprocket driven conveyor
This series are suitable for middle duty conveying.
Features & Benefits
Advantages:
As polymer sprocket driving element,lower operation noisy than steel.polymer bearing housing make it abrasion resistance.Besides,polymer bearing components has quiet operation,which composed of precision ball bearing,polymer bearing housing and end cap for nice appearance.The cover at both ends will protect the bearing,with the function of dust proof and water slash proof.
Disadvantages:
Because the material is polymer,it can'tendure high temperature.
Application
Specifications
| Material of tube | Tube diameter and wall thickness |
| Galvanized steel | Φ 50*1.5 |
| Φ 60*2.0 | |
| Stainless steel | Φ 50*1.5 |
| Φ 60*2.0 |

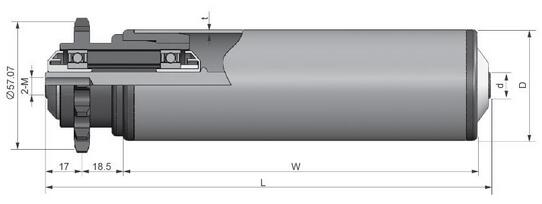

| Roller diameter(D) | Diameter of axle(d) | Suitable for chain | |
| Φ 50 | Φ 12/15 | L=W+41 | 08B14T |
| Φ 60 | Φ 12/15 | L=W+41 | 08B14T |
| Φ12(M8*15) Φ15(M10*20) | |||
