Features & Benefits

Advantages:

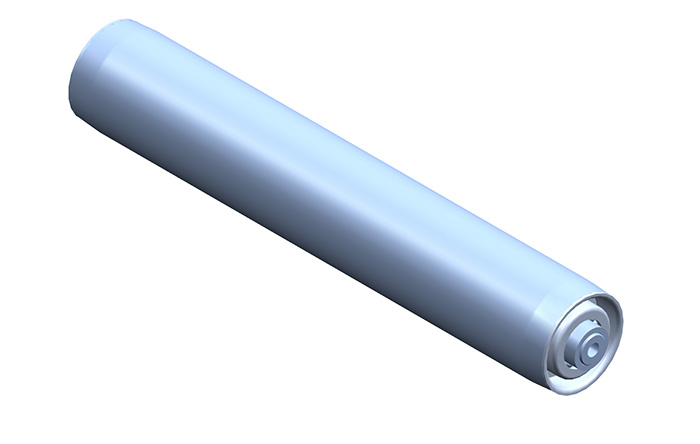

There are many choices for this kind of roller(anti-static roller),can operate well in high or low temperature.the precision components are composed of precision ball bearing and steel bearing housing,which has larger capacity than polymer

Application

Specifications

Material of tube	Tube diameter and wall thickness
Galvanized steel	Φ 38*1.5
	Φ 50*1.5
	Φ 50*2.0
	Φ 60*2.0
	Φ 60*3.0
	Φ 76*3.0
	Φ 76*3.75
	Φ 80*3.0
	Φ 89*3.0
	Φ 89*3.75
Stainless steel	Φ 38*1.2
	Φ 50*1.5
	Φ 60*2.0
	Φ 76*3.0

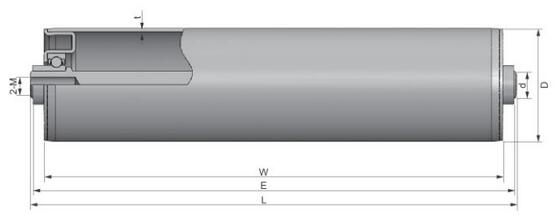

Roller diameter(D)	Diameter of axle(d)
Φ 38	Φ 12	E=W+10	L=W+11
Φ 50	Φ 12/15	E=W+10	L=W+11
Φ 60	Φ 12/15	E=W+10	L=W+11
Φ 76	Φ 15	E=W+10	L=W+11
Φ 76	Φ 20	E=W+10	L=W+11
Φ 80	Φ 20	E=W+10	L=W+11
Φ 89	Φ 20	E=W+10	L=W+11
Φ12(M8*15)       Φ15(M10*20)        Φ20(M12*25)
