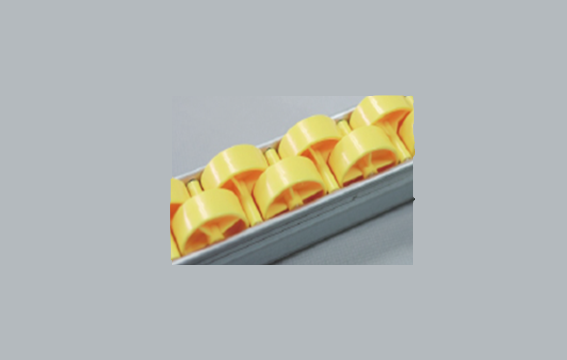

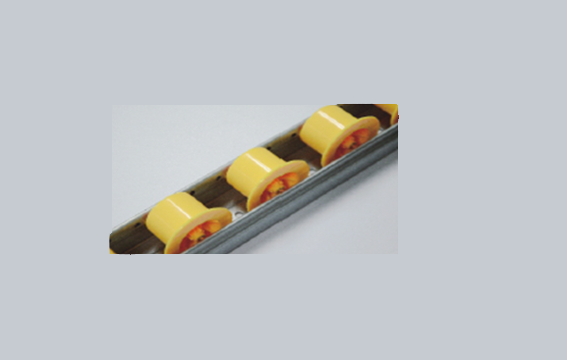

Roller Track
Article fluent mainly used in transporting, storage system supporting products, can beused as slippery course, protect Column, guiding device,rolling performance is good, the cost islow. The roller adopt the high-quality thermoplastic Plastic, has small friction coefficient, impact resistance, long life, acid-proof alkaline, resistant to moisture Wet, etc. Article fluent in the bearing capacity of the see below, when the weight more than full load When, can be in a channel more than installation root article fluent. lnstallation gradient and depends on weight Fluent in the depth of the plane, generally take 3°~ 6° (approximately 5% ~ 9%). Usually in depth Direction every 600 mm to 800 mm installed a root support beam to increase the stiffness of the article fluent.
Features & Benefits
Application
Specifications
| material | frame size | ttl height | wheel size | track width | thickness | wheel/m | load capacity | load capacity/m | picture | |
| 1 | aluminum | 44*33 | 45 | 38*24.5 | 45 | 22 | 15kg/shaft | 80kg |
|
|
| 41*35 | 42.5 | 28*25 | 30 | 1.3-1.7 | 33 | 6kg/shaft | 70kg |
|
||
| 45 | 22 | |||||||||
| 60 | 16 | |||||||||
| 30*22 | 24 | 13*14 | 15 | 66 | 2kg/shaft | 40kg |
|
|||
| 2 | commen metal steel | 44*33 | 45 | 38*24.5 | 45 | 1.0 | 22 | 15kg/shaft | 130kg |
|
| small metal steel | 41*26 | 38 | 28*25 | 33 | 0.8,1.0 | 30 | 6kg/shaft | 80kg |
|
|
| 35 | 28 | 70kg | ||||||||
| 45 | 22 | 60kg | ||||||||
| 3 | strength metal steel | 40*33 | 44 | 32.5*25 | 36 | 0.8,1.0 | 28 | 10kg/shaft | 130kg |
|
| 60*33 | 45 | 30*45 | 35 | 0.8,1.0 | 28 | 30kg/shaft | 350kg | |||
| 85*33 | 50 | 45*55 | 50 | 1.0,1.2 | 20 | 60kg/shaft | 550kg |
